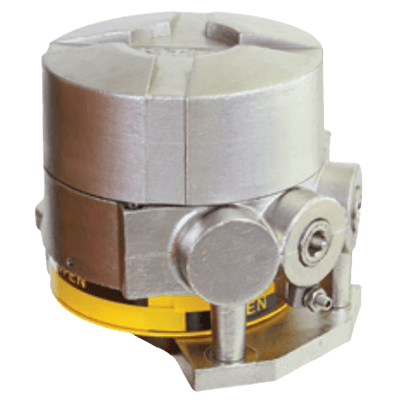

Accutrak 2600 Series Rotary Position Monitor

Brand: Westlock

Rotary position monitors certified to Exd Flameproof and specifically engineered for hazardous environments.

Available with a range of position sensors and switches.
Features
  • Flameproof design meeting a wide range of worldwide approvals
  • Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors
  • Strong durable Beacon offers 360º visual indication in a choice of styles and colors
  • Terminal strips are pre-wired and numbered with generous working space for ease of use
  • Additional conduit for easy field wiring and mounting accessories as standard
  • Wide range of switches and sensors
  • Position transmitter option
  • Switch stabilisation plate
  • Standardized mounting pattern for easy adaptation to common bracketry
  • Range of drive shaft options
  • Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments
  • Rugged stainless steel enclosures
  • IP rated plugs certified where applicable

Specifications

Approvals & Certifications

  • ATEX Ex II 2 G, Ex d IIC, Ex TD A21 IP6X
  • IEC Ex II 2 G, Ex d IIC, Ex TD A21 IP6X
  • NAMUR VDI/VDE 3845

Bushing Material

  • Aluminum Enclosure: Oil Impregnated Bronze
  • Stainless Steel Enclosure: PTFE

Conduit Connection

  • 1/2” NPT Conduit Entries
  • 3/4” NPT Conduit Entries
  • M20 Conduit Entries
  • M25 Conduit Entries

Enclosure Finish

  • Aluminum with Powder Coat Finish
  • Stainless Steel with Electro-Polished Finish

Enclosure, Body Material

  • 316 Stainless Steel - ASTM A351 CF8M, 1.4408
  • 316L Stainless Steel - ASTM A351 CF3M
  • Aluminum

Environmental Protection

  • Flameproof
  • IP66
  • IP67

Materials of Construction

  • Beacon Visual Indicator: Co-Polyester
  • Hardware: Stainless Steel with Electro-Polished Finish

Mounting

  • Direct Mounting

Shaft Material

  • Stainless Steel with Electro-Polished Finish

Switch Type

  • DPDT Mechanical Switches
  • Magnum SPDT (Hermetically Sealed Proximity Typical) Switches
  • V3 Slotted & Barrel Inductive Proximity Sensors
  • V3 SPDT Mechanical Switches

Temperature Range

  • -60° to 110° C (-76° to 230° F)
