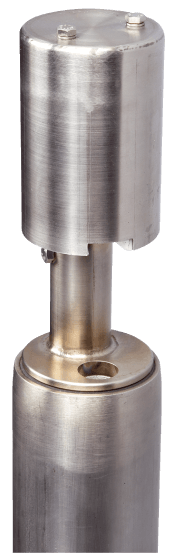

DUSTHUNTER SP100 Scattered Light Dust Measuring Device
Brand: Sick AG
The DUSTHUNTER SP100 is a type-approved measuring device with probe for very low to medium dust concentrations.
Installation from one side makes it ideal for thick-walled or double-walled ducts.
The measurement is based on the forward scattering of light.
An automated check of the zero and reference point as well as a contamination check are on board in the device.
Features- Ideal for thick- or double-walled ducts
- Approved according to EN 15267
- Low maintenance due to self-monitoring and contamination check
- Quick installation – no alignment required
Specifications
Brand
Certifications & Approvals
- CE
- IECEx
- ATEX
Measuring Range
- Certified: Dust Concentration 0 to 7.5 mg/m³ / 0 to 10 mg/m³ / 0 to 15 mg/m³ / 0 to 50 mg/m³ / 0 to 100 mg/m³ / 0 to 200 mg/m³ / 0 to 500 mg/m³
- Dust Concentration 0 to 5 mg/m³ / 0 to 500 mg/m³
Response Time
- 1 to 600 s
Accuracy
- ≤ 2 % of Measuring Range Full Scale
Process Temperature
- -40° to 400° C
Process Pressure
- -50 to 100 hPa
Process Gas Humidity
- Non-Condensing
Ambient Temperature
- -40° to 60° C
Enclosure Rating
- IP54
- IP66
Communication
- Ethernet
- PROFIBUS DP
- Modbus
Indication
- Status LEDs: “Power,” “Failure,” and “Maintenance Request”
- LC Display
Power Supply
- 24 Vdc 47 to 63 Hz
- 90-250 Vac
Power Consumption
- ≤ 50 VA
- ≤ 70 VA
Gas Flow Rate
- 38 to 63 m³/h at 30 hPa Counter Pressure
- Emissions Monitoring at Power Plants And Waste Incineration Plants
- Monitoring of Filter Systems
- Measurements in Exhaust Gas or Exhaust Ventilation Ducts
