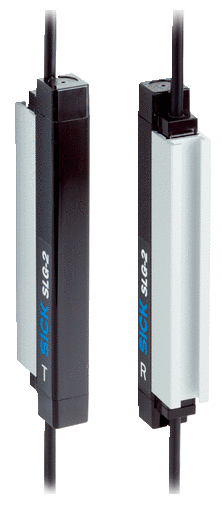

FlexChain Switching Automation Light Grid
Brand: Sick AG
The FlexChain is a flexibly configurable light grid thanks to the sequential connection of several sensors.
There is no need for long connection cables or complex wiring.
By pressing a button on the FlexChain Host, the sensors can be addressed and taught-in automatically, meaning the system is immediately ready for use.
Different sensor technologies can be combined and freely arranged: Through-beam photoelectric sensors, photoelectric sensors.
The raw sensor data is evaluated via the FlexChain Host with integrated logic modules or forwarded directly via IO-Link, CANopen, RS-485 or I/O signals.
Detailed diagnostic information ensures optimum process stability and measurement certainty during operation.
Features- Flexibly expandable light grid system: Up to 60 sensors can be cascaded and controlled centrally via the FlexChain host
- Ready for operation immediately: The sensors are identified and taught in at the push of a button
- Optimum measurement certainty thanks to sequential sensor cycling without mutual interference
- Highly flexible positioning of through-beam photoelectric sensors, photoelectric retro-reflective sensors, photoelectric proximity sensors and light grids at any distance or in any position
- High process stability thanks to extensive diagnostic function
- High flexibility due to logic configuration in the host and the IO-Link, CANopen and RS-485 interface variants
Specifications
Brand
Communication Interface
- IO-Link (V1.1)
- Serial (RS-485)
- CANopen
Operating Range
- 0.25 to 15 m
Cable Length
- 0.15 to 1.5 m
- Storage and Conveyor
- Access Control
- Protrusion Monitoring
