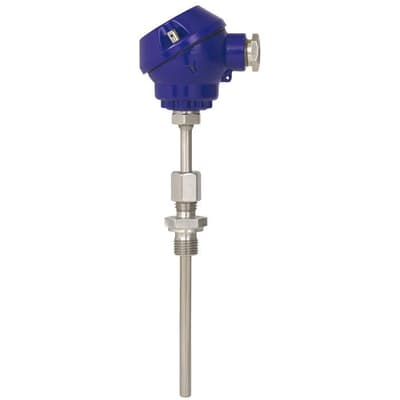

Wika Threaded thermocouple, Model TC10-D
Images are representations only.

Threaded Thermocouple - TC10-D

Brand: WIKA Alexander Wiegand SE & Co. KG
Favorite

Thermocouples of this series are used for the measurement of liquid and gaseous media at low and medium pressures.

The thermocouple is screwed directly into the process. The electrical connection is made via connection terminals in the connection head (splash-proof).
Features
  • Application ranges from -40 ... +600 °C (-40 ... +1,112 °F).
  • Compact design.
  • Universal application.
  • Direct installation into the process.
  • Explosion-protected version Ex i.

Specifications

Brand

Certifications & Approvals

  • CE
  • Uzstandard
  • UkrSEPRO
  • BelGIM
  • MTSCHS
  • DNOP - MakNII
  • PESO
  • KOSHA
  • NEPSI
  • INMETRO
  • GOST
  • IECEx
  • EAC
  • KazInMetr

Environmental Protection

  • IP68
  • IP65

Sensor Type

  • Type K, J, E, N, T

Sensor Range

  • -40° to 600° C (-40° to 1,112° F)

Output Signal

  • 4-20 mA

Head Connection

  • M24 x 1.5, 1/2” NPT

Ambient Temperature

  • -40° to 80° C

  • Machine building, plant and vessel construction
  • Propulsion technology
  • Air-conditioning and refrigeration systems
