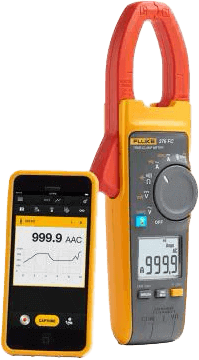

Fluke 376 FC True-RMS Clamp Meter with iFlex
Brand: Fluke CorporationThe Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians.
The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.
The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads.
The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.
Features- Measures AC/DC current with included 18-inch or 36-inch iFlex current probe
- VFD low pass filter for accurate measurements of non-linear signals
- Remotely log, trend and monitor to pinpoint intermittent faults
- Inrush measurement to filter out noise and capture starting current
Specifications
Brand
AC Current via Jaw
- Range: 999.9 A
- Resolution: 0.1 A
- Accuracy: 2 % ± 5-digits
AC Current via Flexible Current Probe
- Range: 2500 A
- Resolution: 0.1 A (≤ 600 A), 1 A (≤ 2500 A)
- Accuracy: 3 % ± 5-digits
DC Current
- Range: 999.9 A
- Resolution: 0.1 A
- Accuracy: 2 % ± 5-digits
AC Voltage
- Range: 1000 V
- Resolution: 0.1 V (≤ 600.0 V), 1 V (≤ 1000 V)
- Accuracy: 1 % ± 5-digits
DC Voltage
- Range: 1000 V
- Resolution: 0.1 V (≤ 600.0 V), 1 V (≤ 1000 V)
- Accuracy: 1 % ± 5-digits
mV dc
- Range: 500.0 mV
- Resolution: 0.1 mV
- Accuracy: 1 % ± 5-digits
Frequency via Jaw
- Range: 5.0 Hz to 500.0 Hz
- Resolution: 0.1 Hz
- Accuracy: 0.5 % ± 5-digits
Frequency via Flexible Current Probe
- Range: 5.0 Hz to 500.0 Hz
- Resolution: 0.1 Hz
- Accuracy: 0.5 % ± 5-digits
Resistance
- Range: 60 kΩ
- Resolution: 0.1 Ω (≤ 600 Ω), 1 Ω (≤ 6000 Ω), 10 Ω (≤ 60 kΩ)
- Accuracy: 1 % ± 5-digits
Capacitance
- Range: 1000 μF
- Resolution: 0.1 μF (≤ 100 μF), 1 μ F (≤ 1000 μF)
- Accuracy: 1 % ± 4-digits
Operating Temperature
- -10° C to +50° C
Operating Humidity
- ≤ 90 % RH (at 10° C to 30° C)
- ≤ 75 % RH (at 30° C to 40° C)
- ≤ 45 % RH (at 40° C to 50° C)
Safety
- IEC 61010-1, Pollution Degree 2
- IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
- IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
IP Rating
- IEC 60529: IP30, non-operating
