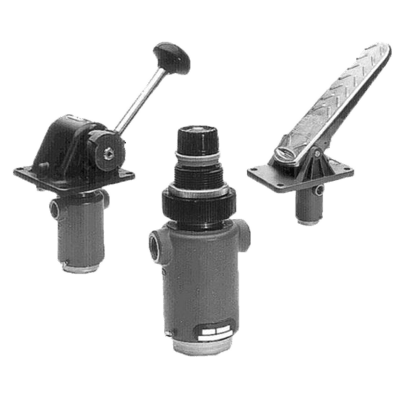

Fine Setting Valve
Brand: AVENTICSFine-Setting-Valve: Manually operated pressure regulators with multiple manual actuating element choice.
Features- Qn max. 900 l/min
- Width: 60 to 100 mm
- Poppet valve for dynamic pressure control
Specifications
Brand
Flow Qn
- 900 l/min
Working Pressure
- 0.1 to 12 bar
Adjustment Range
- 0.1 to 10.1 bar
Ambient Temperature
- -25° to 70° C
Medium Temperature
- -25° to 70° C
Media
- Compressed Air
Hysteresis
- 0.15 bar
Control Stroke
- 7.5 mm
Connection Size
- G 1/4"
Housing Material
- Die Cast Zinc
Seal Material
- Acrylonitrile Butadiene Rubber
