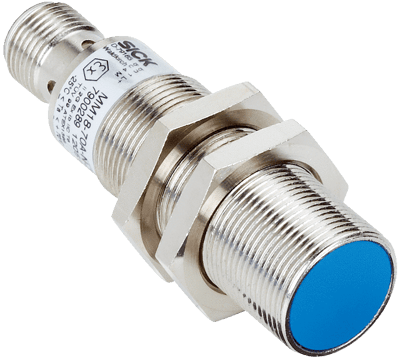

MM Namur Magnetic Proximity Sensor
Brand: Sick AGMM NAMUR magnetic proximity sensors provide large operating distances that can reliably detect magnetic objects. Magnetic proximity sensors are resistant to dust, heat and vibration, making them ideal for use in harsh environments – even highly explosive atmospheres.
By using magnetic conductors, these sensors are able to reliably detect objects over greater distances. The NAMUR design for hazardous areas is available in MM12 and MM18 designs.
Features- NAMUR version ensures safe function in explosion-hazardous areas
- Non-contact operation eliminates interference from dirt, dust and vibrations, increasing sensor life and reducing maintenance costs
- Large sensing ranges ensure reliable switching, even with target position tolerances
- Universal use since detection through other objects, such as plastic walls or non-magnetic stainless steel walls, is also possible
Specifications
Brand
Housing
- Cylindrical Thread Design
Thread
- M12 x 1
- M18 x 1
Sensing Range
- 60 to 120 mm
Magnetic Field Sensitivity, Minimum
- ≤ 0.4 to ≤ 1 mT
Housing Material
- Nickel-Plated Brass
- Stainless Steel V4A (1.4404, 316L)
Environmental Protection
- IP67
Connection
- Male Connector M12, 4-Pin
- Cable, 2-Wire
- Cable with Connector M9, 5-Pin, with knurled Nuts
Temperature Range
- -25° to 70° C
Switching Output
- NAMUR
Certifications & Approvals
- CE
- ATEX
