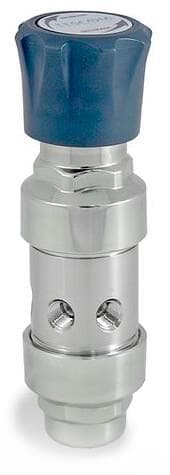

Tescom™ SG 2 Two-Stage Regulator Industrial
Brand: TESCOM
SG2 Series is a compact, lightweight, high purity two-stage cylinder regulator for specialty, flammable and industrial gas flows of less than 4 SCFM / 112 SLPM.
Sensitive, extra long-life metal diaphragm ensures gas purity and integrity. User-friendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly.
Suitable for Laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage, and other high purity applications.
This regulator is also ideal for process analyzer gases, metal fabrication and specialty and industrial gas cylinders.
Features- Cartridge valve design incorporates 10 micron filter to protect the regulator seat and makes service simple.
- Optional neoprene diaphragms provide exceptional sensitivity for precise pressure control.
- User-friendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly.
Specifications
Brand
Additional Information
- For Custom Modifications or a Complete System Solution, Please Contact Your Local Sales Office.
Body Material
- Stainless Steel, Nickel-Plated Brass
Diaphragm Material
- 316 Stainless Steel, Neoprene
Filter Material
- 10 micron Nominal Sintered Bronze
Flow Capacity
- Cv = 0.06
Operating Temperature
- PCTFE Seat: -40° to 140° F / -40° to 60° C
Port Size & Type
- Inlet & Outlet: 1/4” NPT Female
Pressure Rating
- Maximum
Remaining Parts
- Brass, 300 Series Stainless Steel
Seal Material
- Teflon or Buna-N
Seat Material
- PCTFE, Polyimide*
Weight
- 4.0 lbs / 1.8 kg
