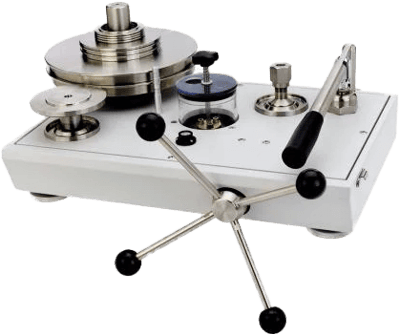

Fluke Calibration P3100 Hydraulic Deadweight Testers

Brand: Fluke Corporation

The P3100 models are available in single or dual piston format.

Unit can be supplied in psi, bar, kgf/cm², and MPa.

This robust instrument is highly accurate, quick and easy to use.

Units feature a built-in priming pump for large volume applications, piston flotation indicators and a high quality screw press for fine pressure control.
Features
  • Pressure ranges to 60,000 psi (4000 bar)
  • 0.015% of reading accuracy standard (0.008% optional)
  • Single or dual piston format
  • Built-in hand pumps standard
  • Mounted spirit level with adjustable feet
  • Units can be trimmed to local gravity FOC

Specifications

Pressure Ranges

  • Oil Operated: 20,000 psi

Accuracy

  • ± 0.015 % of Reading

Standard Weight Material

  • Series 3 non-magnetic austenitic stainless steel

Weight Density

  • 7.8 g/cm³

Piston Material

  • Tungsten carbide with nickel binder

Cylinder Material

  • Hardened martensitic steel

Test Port Adaptors

  • 1/8”
  • 1/4”
  • 3/8”
  • 1/2”

O-ring Seal Materials

  • Buna N
  • Viton
  • EPDM
