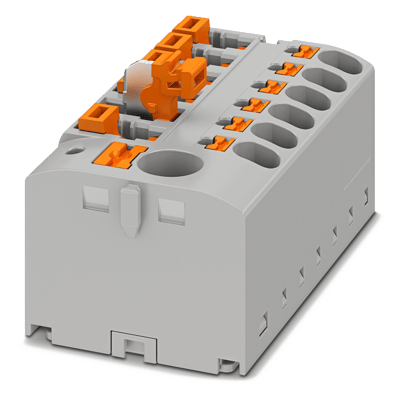

PTFIX-fuction Fuction Distribution Block
Brand: Phoenix Contact
The PTFIX-function family of function distribution blocks is composed of various disconnect and fuse blocks. The distribution blocks are available with 7 terminal points and a nominal cross-section of 2.5 mm².
As is the case with the PTFIX blocks, the blocks have a frontal Push-in connection. However, they differ in their structure and function.
The line contact of the function distribution blocks is connected to the distribution connections via the individual disconnect zones or fuse-links. The function inserts therefore provide the links between the individual distribution connections and the line contact. This design enables you to quickly and easily separate or fuse individual signal lines.
Features- Fast installation with ready-to-connect blocks
- Easy integration of function elements
- Significant space savings with the minimal size
- Flexible mounting options
- Standardized accessories – CLIPLINE complete
Specifications
Brand
Mounting
- Base Block
Number of Connections
- 7
Current / Voltage
- 20 A / 400 V
Cross-section Range / AWG
- 0.14 to 25 mm² / 26 ... 14
- Line Contact: 0.5 to 10 mm² / 20 ... 8
