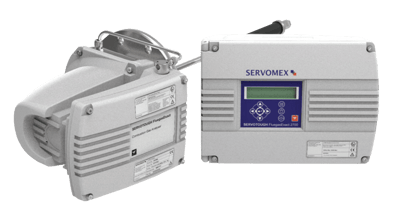

SERVOTOUGH FluegasExact 2700 Flue Gas Analyzer
Brand: SERVOMEXArmed with an integral sampling system custom-designed for operation in some of the hottest and most extreme combustion environments, the FluegasExact is the analyzer of choice for measuring oxygen and combustibles in the most demanding hydrocarbon processing and power generation applications.
Designed for high temperature processes up to 1,750° C (3,182° F), the FluegasExact is ideal for use in extreme heated environments.
This resilience makes it the analyzer of choice for controlling a wide range of combustion processes, including use in process heaters, utility boilers, thermal crackers, incinerators and furnaces.
Specifications
Brand
Accuracy
- ± 1 % of Reading
- ± 25 ppm
- ± 5 % of Reading
- ± 75 ppm
- 0.1 % Oxygen
Approvals & Certifications
- ATEX Category 3
- CE
- EMC
- IECEx Zone 2
- WEEE
Materials of Construction
- Combustible Sensor & Flow Cube: Corrosion Resistant Glass
- Combustible Sensor & Flow Cube: Platinum/Iridium
- Oxygen Sensor: 310 Stainless Steel
- Oxygen Sensor: Ni/Fe/Cr Alloy
- Oxygen/Combustible Sensor & Flow Cube: Platinum
- Oxygen/Combustible Sensor & Flow Cube: Zirconia
- Oxygen/Combustible Sensor: Alumina
- Sensor Head, Oxygen Sensor, Combustible Sensor, Flow Cube: 316 Stainless Steel
- Sensor Head: 303 Stainless Steel
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
- 1/8” NPT Female
- 3/4” NPT Female
Tube Connection
- 1/2” O.D. Adapter for Probe Fitting
