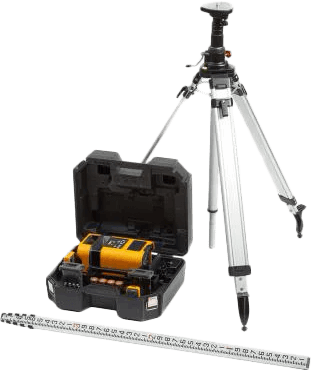

PLS HV2R/G KIT Manual Slope Red Rotary Laser Kit
Brand: Fluke CorporationThe PLS HV2R red beam rotary lasers are designed for the construction job site, offering a rugged ergonomic design and simplified controls.
The HV2R emits a laser line in the horizontal or vertical plane.
The HV2R rotary lasers also emit a point from the top when placed in the vertical position.
The HV2R lasers are ideal for use by general contractors, electricians, plumbers, and landscapers in both interior and exterior applications.
Features- Accuracy: ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
- Laser Axis: Green Horizontal and Vertical
- Working range: ≤ 30 m (100 ft)
- Working range with XLD: ≤ 300 m (1000 ft radius)
- 1-meter drop tested
- IP67 certified protected from dust and immersion in water with a depth of up to 1 m (or 3.3 ft) for up to 30 minutes
Specifications
Brand
Laser Axis
- Horizontal and Vertical
Accuracy
- ≤ 2.2 mm @ 30 m
Auto-leveling Range
- ± 5-degrees
laser Detector
- Without XLD: ≤ 30 m
- With XLD: ≤ 300 m
IP Rating
- IP67
Operating Temperature
- -20° to 50° C
- -4° to 122° F
Battery
- 4 x D Alkaline or NiMH rechargeable
Battery Life
- > 60 hours
Visible Spectrum
- 450 nm - 800 nm
International EMC
- IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B
- Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
- Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
