Images are representations only.

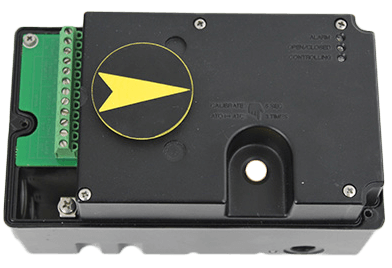

D20 Digital Positioner
Brand: Flowserve PMV PalmstiernasThe compact D20 digital positioner suits both linear and rotary actuators in single-acting applications.
Very high control precision on even the smallest valves. IS, NI and explosion-proof versions.
Features- Greater process control with very high precision, even on the smallest valves, plus add-in switches and 4-20 mA position feedback options.
- Installation and operation ease from friction clutch, compact design, and single button quick auto-calibration feature that tunes the D20 in seconds.
- Broad application versatility made possible by flexible design that allows mounting to VDI/VDE 3845 (rotary) and VDI/VDE 3847 (linear with integrated tubing) standards.
- Optional LCD (D22).
- ATEX, FM intrinsically safe and non-incendive certificates, explosion-proof version, Alu or SST and LCD available.
- 4-20 mA In/Out, Hart, Profibus PA and Foundation Fieldbus available.
Specifications
Configurations
- D20E Explosion-proof Housing
- Standard Housing
