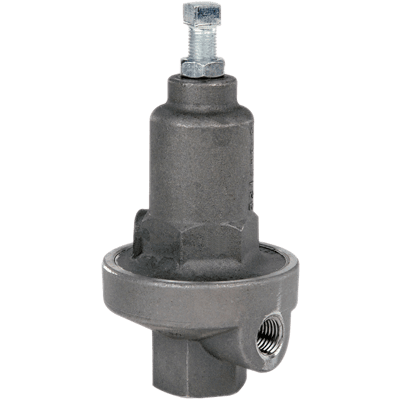

Model 1465 Pressure Reducing Regulator
Brand: Cashco, IncThe Model 1465 is for small flows and is used primarily when sampling a fluid for analytical purposes.
The 316 SST body can handle inlet pressures as high as 5,000 psig (344 Barg) and is designed to control a wide range of fluids including natural gas, inert gases, sour gas, steam, chemicals and water.
Features- Pressure Range: psig: 5 to 500 (bar: 0.34 to 34.5, kPa: 34.5 to 3,447)
- Supply Pressure (Maximum): psig: 5,000 (bar: 344, kPa: 34,473)
- Ambient Temperature: -29 to 205° C (-20 to 400° F)
- Port Size: 1/4"
- Port Threads: Female NPT
- Materials of Construction:
- Body: Stainless Steel
- Trim: Stainless Steel
- Diaphragm: 302 Stainless Steel, Neoprene, Elgiloy, Fluorcarbon
- O-Ring: Tetrafluoroethylene
- Spring: 302 Stainless Steel, Inconel® X-750
Specifications
Brand
Actuator Type
- Handwheel
- Screwdriver Adjust
Diaphragm Material
- 302 Stainless Steel
- Elgiloy
- Fluorocarbon
- Neoprene
Enclosure, Body Material
- 316 Stainless Steel
Flow Rate
- 0.05 Cv
- 0.19 Cv
Media
- Air
- Chemicals
- Gas
- Hydrocarbon Gas
- Hydrocarbon Liquid
- Oxygen
- Sour Natural Gas
- Steam
- Water
Mounting
- Panel
NPT Connection
- 1/4” NPT Female
O-Ring Material
- Tetrafluoroethylene
Operating Temperature
- -29° to 205° C (-20° to 400° F)
Pressure Range
- bar: 0.3 to 34.4
- kPa: 34.4 to 3,447
- psig: 5 to 500
Seat / Seal Material
- Stellite #6B
Supply Pressure - Maximum
- bar: 344
- kPa: 34,473
- psig: 5,000
Trim Material
- Stainless Steel
Vent
- Straight
- Tapped Exhaust
